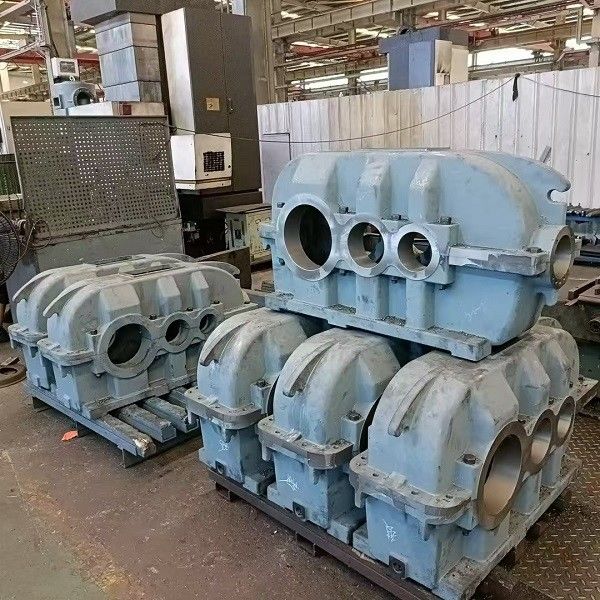

Customizable Lost Foam Casting For Large Scale Reducers Housing

China Foundry OEM Lost Foam Casting For Large - Scale Reducers Houseing

Principle of Lost Foam Casting

• In this process, a polystyrene foam pattern with the same shape as the desired reducer part is first made. The foam pattern is usually fabricated through processes such as foam cutting, gluing, and assembly to accurately represent the internal and external structures of the reducer, including the housing, gear chambers, and shaft holes.
• Then, the foam pattern is coated with a refractory coating. This coating serves multiple purposes. It provides a barrier against the molten metal during casting, helps to improve the surface quality of the casting, and also enables the escape of the decomposed foam products during the pouring process.
• When the molten metal is poured into the mold containing the coated foam pattern, the heat of the molten metal causes the foam pattern to gradually decompose and vaporize. The space vacated by the disappearing foam is then filled by the molten metal, which solidifies to form the reducer casting.

Advantages in Producing Large - scale Reducers

• Complex Structure Reproduction: Reducers often have complex internal structures with gears, shafts, and chambers. Lost foam casting can accurately reproduce these complex geometries. For example, the intricate gear meshing spaces and the precise alignment of bearing seats can be well - formed, ensuring the proper functioning of the reducer.
• Dimensional Accuracy: It can achieve high - dimensional accuracy for large - scale reducer castings. The absence of parting lines, which are common in traditional casting methods, reduces errors caused by mold assembly. This is crucial for reducers where precise gear engagement and shaft alignment are required to maintain efficient power transmission and reduce noise and vibration during operation.
• Reduced Machining Allowance: Compared to some other casting methods, lost foam casting can produce parts with relatively small machining allowances. This is beneficial in reducing the machining time and cost for large - scale reducer components. Since the casting surface quality is relatively high after the foam pattern and coating process, less material needs to be removed during subsequent machining operations.
• Integrated Casting: It allows for the integrated casting of multiple components of the reducer in some cases. For example, the housing and certain attached brackets or flanges can be cast as a single piece, reducing the need for additional assembly steps and improving the overall structural integrity of the reducer.

Application and Significance in the Reducer Industry

• In the manufacturing of large - scale reducers used in heavy machinery, such as those in mining, metallurgy, and power generation industries, lost foam casting has become an important production method. It enables the production of high - quality reducer castings that can withstand heavy loads and continuous operation under harsh conditions.
• By improving the casting quality and efficiency of large - scale reducers, lost foam casting technology contributes to the overall performance improvement of the related equipment. It helps to increase the reliability and service life of the reducers, thereby reducing maintenance costs and downtime in industrial production processes.
