6063F Aluminum Rod TJ Clads Steel Yoke Complete Anode Stem For Potroom

Welding Aluminum Rod Steel Yoke Complete Anode Rod Assembly In Potroom Reduction Cell For Aluminum Smelter Industry

1. Aluminum Rod: The aluminum rod serves as the electrical conductor in the anode assembly. It is responsible for carrying the electrical current from the power source to the anode carbon block. The aluminum rod is typically made of high-purity aluminum to ensure good electrical conductivity.
2. Steel Yoke: The steel yoke provides mechanical support and stability to the anode assembly. It is designed to hold the anode carbon block in place and withstand the forces generated during the aluminum smelting process. The steel yoke is usually made of high-strength steel to ensure durability and reliability.
3. Anode Carbon Block: The anode carbon block is the main component of the anode assembly. It is made of carbonaceous material and is responsible for reacting with the oxygen in the alumina to produce carbon dioxide. The anode carbon block gradually wears down over time and needs to be replaced periodically.
4. Welding Joints: The welding joints between the aluminum rod and the steel yoke are crucial for ensuring a reliable electrical connection and mechanical stability. The welding process must be carefully controlled to ensure high-quality welds that can withstand the harsh conditions of the aluminum smelting process.

II. Function of the Anode Assembly

The anode assembly in the potroom reduction cell plays a vital role in the aluminum smelting process. Here are its main functions:

1. Electrical Conduction: The aluminum rod conducts electrical current from the power source to the anode carbon block. The electrical current passes through the electrolyte bath and causes the alumina to dissociate into aluminum and oxygen. The oxygen then reacts with the anode carbon block, producing carbon dioxide.
2. Mechanical Support: The steel yoke provides mechanical support to the anode carbon block, ensuring that it remains in place during the aluminum smelting process. The yoke also helps to distribute the weight of the anode assembly evenly and prevent it from sagging or collapsing.
3. Heat Dissipation: The anode assembly generates a significant amount of heat during the aluminum smelting process. The steel yoke and the aluminum rod help to dissipate this heat, preventing overheating and damage to the anode assembly.
4. Gas Evolution: As the anode carbon block reacts with the oxygen in the alumina, carbon dioxide gas is evolved. The anode assembly is designed to allow for the efficient removal of this gas from the reduction cell, preventing the build-up of pressure and ensuring safe operation.

III. Manufacturing Process of the Anode Assembly

The manufacturing process of the welding aluminum rod steel yoke complete anode assembly involves several steps:

1. Material Preparation: The aluminum rod and the steel yoke are made from high-quality materials that meet the specific requirements of the aluminum smelting process. The materials are carefully selected for their electrical conductivity, mechanical strength, and corrosion resistance.
2. Machining and Fabrication: The aluminum rod and the steel yoke are machined and fabricated to the required dimensions and shapes. The machining process must be precise to ensure a tight fit between the components and a reliable electrical connection.
3. Welding: The aluminum rod and the steel yoke are welded together using a suitable welding process. The welding process must be carefully controlled to ensure high-quality welds that can withstand the harsh conditions of the aluminum smelting process.
4. Quality Control: The anode assembly is subjected to strict quality control checks to ensure that it meets the required standards. These checks may include dimensional inspections, electrical conductivity tests, mechanical strength tests, and nondestructive testing.

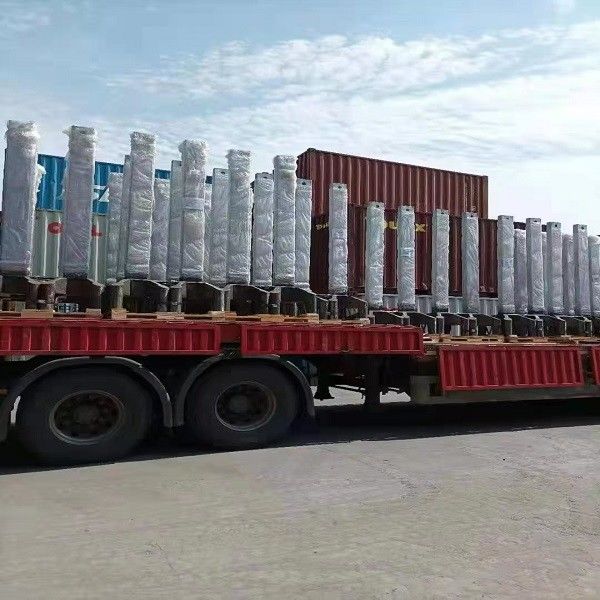

5. Packaging and Shipping: Once the anode assembly has passed the quality control checks, it is packaged and shipped to the aluminum smelter. The packaging must be designed to protect the anode assembly during transportation and storage.

IV. Importance of Quality in the Anode Assembly

The quality of the welding aluminum rod steel yoke complete anode assembly is crucial for the efficient and reliable operation of the aluminum smelter.

1. Electrical Efficiency: A high-quality anode assembly with good electrical conductivity ensures efficient electrical conduction, reducing energy consumption and increasing the productivity of the aluminum smelting process.
2. Mechanical Stability: A strong and durable anode assembly with reliable welding joints provides mechanical stability, preventing damage to the anode carbon block and ensuring a long service life.
3. Safety: A properly manufactured anode assembly with good heat dissipation and gas evolution characteristics helps to ensure safe operation of the aluminum smelter, reducing the risk of accidents and explosions.
4. Cost-effectiveness: A high-quality anode assembly with a long service life reduces the frequency of replacements and maintenance, resulting in cost savings for the aluminum smelter.

In conclusion, the welding aluminum rod steel yoke complete anode assembly in the potroom reduction cell for the aluminum smelter industry is a critical component for the efficient production of aluminum. The quality of this assembly is crucial for ensuring electrical efficiency, mechanical stability, safety, and cost-effectiveness. By understanding the components, function, manufacturing process, and importance of quality in the anode assembly, aluminum smelters can make informed decisions when selecting and using this important component.

Anode assembly for Century

Completely produced by RUISEN team;

-Aluminium Rod;

-Alu/Steel  bimetallic by explosive welding;

-Casting yoke;

​
