Welded Anode Components With Aluminium Bars Tirmetallic Clads Transition Joint Steel Stub

Name: Welded Anode Components With Aluminium Bars Tirmetallic Clads Transition Joint Steel Stub
Brand: Shaanxi Ruisen Metallic Composite Material Co., Ltd
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: RUISEN

Payment & Shipping Terms

Packaging Details: PALLET

Delivery Time: 60-90DAYS

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Aluminium Bars Steel Stub Anode Components, Tirmetallic Clads Transition Joint Anode Components, Aluminium Bars Steel Stub Anode Assembly


Material:	Metal（Aluminum、copper）	Material:	Aluminium, Carbon Steel, Copper
Application:	Aluminium Smelter	Process:	Welding

Material:	Metal（Aluminum、copper）
Material:	Aluminium, Carbon Steel, Copper
Application:	Aluminium Smelter
Process:	Welding

Description

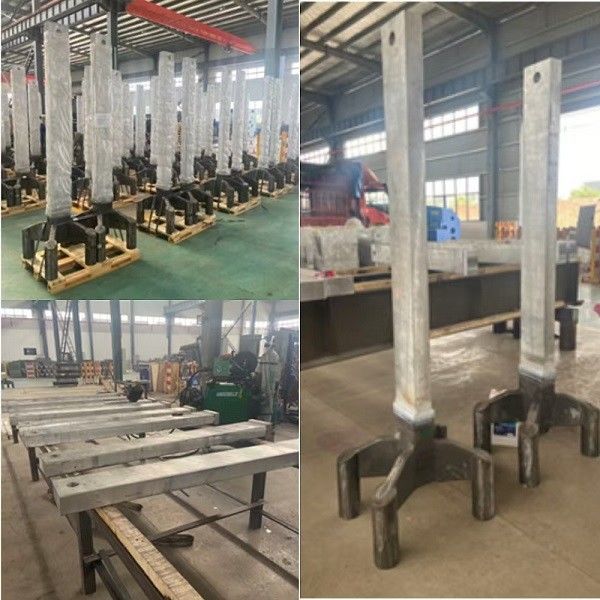

Welded Anode Components With Aluminium Bars Tirmetallic Clads Transition Joint Steel Stub

Aluminium Rod Tirmetallic Clads Transition Joint Steel Yoke Welded Complete Anode Rod Assembly

Anode Aluminium Bars AL6063

Anode aluminium bars are components commonly used in certain electrochemical processes, especially in electrolytic aluminium production. These bars are typically made of aluminium and serve as the anode in the electrolytic cell. They play a crucial role in the electrochemical reactions that take place during the production of aluminium. During the process, current flows through these anode bars, and oxidation reactions occur at their surface.

Tirmetallic Clads Transition Joint aluminum-steel clads or al-TA1-steel clads

Tirmetallic clads transition joints are designed to connect different metals in a system where there is a need for a smooth transition in terms of mechanical and electrical properties. In the context described, these joints are likely used to connect different components with varying metal compositions. For example, they might be used to connect the anode aluminium bars to other parts of the assembly that are made of different metals. The transition joint helps to minimize issues such as differences in thermal expansion, electrical resistance variations, and mechanical stress that could arise when different metals are directly joined without proper adaptation.

Steel Stub Low carbon steel

A steel stub is another element within the assembly. Steel is often used due to its strength and durability. The steel stub might provide structural support or serve as a connection point for other components. It could be designed to withstand mechanical loads and also contribute to the overall stability of the anode assembly. In some cases, the steel stub may also have electrical properties that are relevant to the functioning of the anode system, such as conducting current or providing a stable electrical connection within the assembly.

Welded Anode Assembly

The welded anode assembly is the complete structure formed by welding together the anode aluminium bars, tirmetallic clads transition joints, and steel stubs. The welding process ensures a strong and reliable connection between these components. This assembly is carefully designed and fabricated to function effectively in the specific electrochemical environment of the electrolytic cell. A well - constructed welded anode assembly is essential for the efficient operation of the electrolytic process as it affects factors such as current distribution, stability of the anode, and overall performance of the cell in terms of aluminium production.

Shaanxi Ruisen Metallic Composite Material Co., Ltd

(Xian Ruisen Clad Metal Material Co., Ltd.)

Location of factory: Xingping City, Shaanxi.China

Year of foundation: 1997

Number of employee: 300

company covers an area : 55,896 square meters

business:

▶ metal composite materials, annual production capacity is 10,000 tons

▶ cast steel, annual production capacity is 15,000 tons

▶ Welded structures. annual production capacity is 10000 pieces

Welded Anode Components With Aluminium Bars Tirmetallic Clads Transition Joint Steel Stub 0

Backgroud

The anode assemblies act as both a mechanical support and to transfer the large amounts of electrical current to the anode. The anode assmeblies are subject to a very demanding service life, a nd this creates a continual and variable need of repair and replacement.

Anode Assembly

Anode rods: aluminium or copper

Trasnsition joint inserts: bimetallic or trimetallic clads

Anode yoke: casting steel yokes or welding steel yokes

Anode assembly for SOHAR.

Completely produced by RUISEN team;

-Aluminium Rod;

-Alu/TA1/Steel explosive welding;

-Casting yoke;

Welded Anode Components With Aluminium Bars Tirmetallic Clads Transition Joint Steel Stub 1

Welded Anode Components With Aluminium Bars Tirmetallic Clads Transition Joint Steel Stub 3

Equipment list:

-Automatic sand processing line.

-Automatic molding production line.

-Automatic Fritction welding processing line.

-Two pouring lines.

-Three intermediate frequency electric furnaces.

-Steel claw/yoke heat treatment furnace.
